The mechanical room: machines, manifold and vent, below the living spaces. Illustrative residence; not a specific project.
How our system works
Simple, elegant technology that seamlessly integrates with your home.
01 / 04
Air intake
System draws in ambient mountain air.
02 / 04
Separation
Molecular sieve separates oxygen from nitrogen.
03 / 04
Enrichment
Oxygen concentration increased to optimal levels.
04 / 04
Distribution
Enriched air delivered to desired rooms.
1Nitrogen and heat, vented20.9% O₂90% ± 3%
Nitrogen and heat, vented.
20.9% O₂
90% ± 3%
Pressure swing adsorption, simplified. No oxygen is stored; it is made on demand and mixed into the room’s air. Illustrative residence; not a specific project.
A home at 8,970 ft; at 25.0% oxygen it breathes like 4,620 ft, 4,350 ft lower.
Your home8,970 ft
Difference: −4,350 ft
4,620 ftBreathes like · 25.0% O2
Equivalent altitude by inspired oxygen pressure, ICAO standard atmosphere.25.0%is a demonstration setpointwithin the23–26%range.How the drop is computed
How our system works
Simple, elegant technology that seamlessly integrates with your home.
Pressure swing adsorption, simplified. No oxygen is stored; it is made on demand and mixed into the room’s air. Illustrative residence; not a specific project.
1Nitrogen and heat, vented220.9% O₂
01 / 04
Air intake
System draws in ambient mountain air.
190% ± 3%
02 / 04
Separation
Molecular sieve separates oxygen from nitrogen.
03 / 04
Enrichment
Oxygen concentration increased to optimal levels.
04 / 04
Distribution
Enriched air delivered to desired rooms.
A home at 8,970 ft; at 25.0% oxygen it breathes like 4,620 ft, 4,350 ft lower.
Your home8,970 ft
Difference: −4,350 ft
4,620 ftBreathes like · 25.0% O2
Equivalent altitude by inspired oxygen pressure, ICAO standard atmosphere.25.0%is a demonstration setpointwithin the23–26%range.How the drop is computed

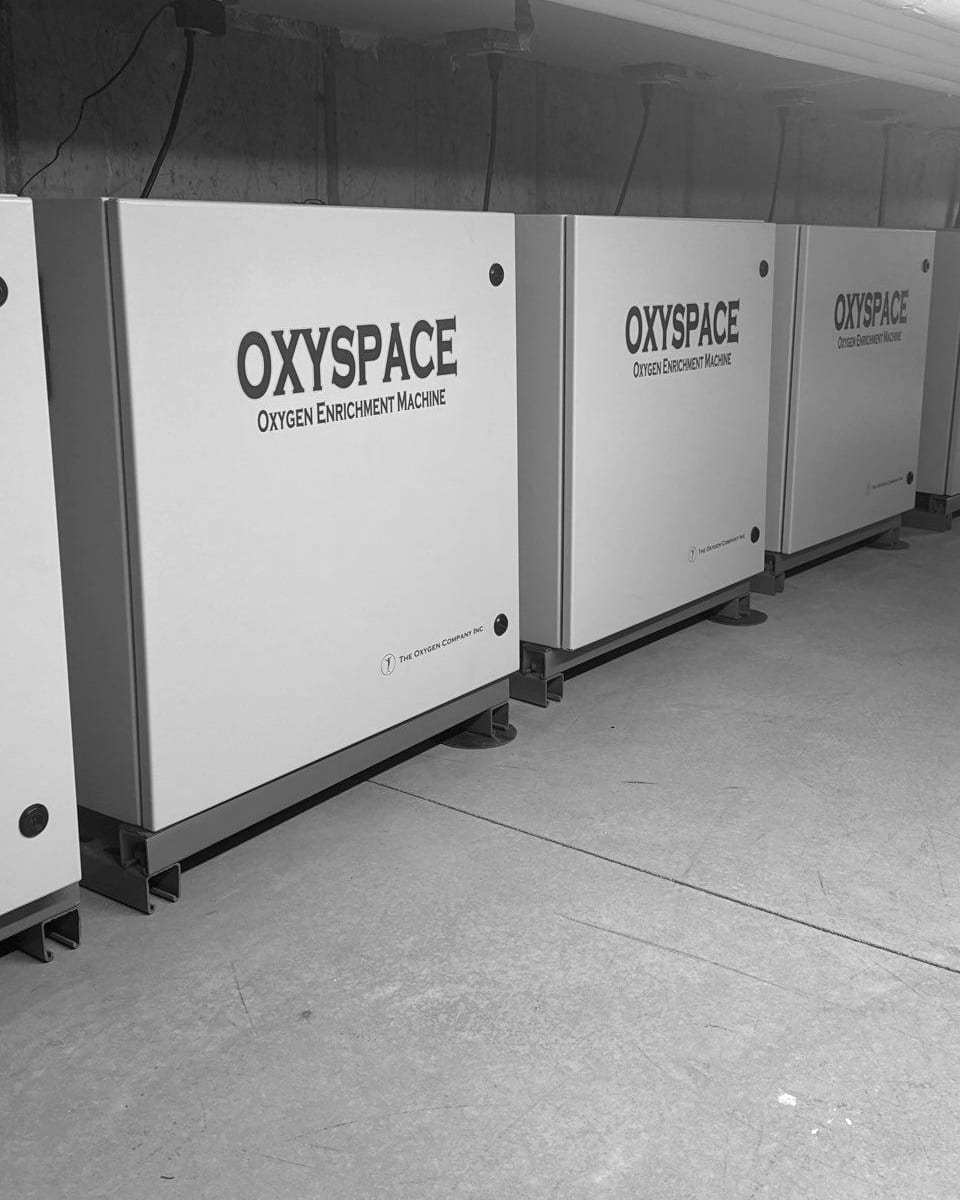

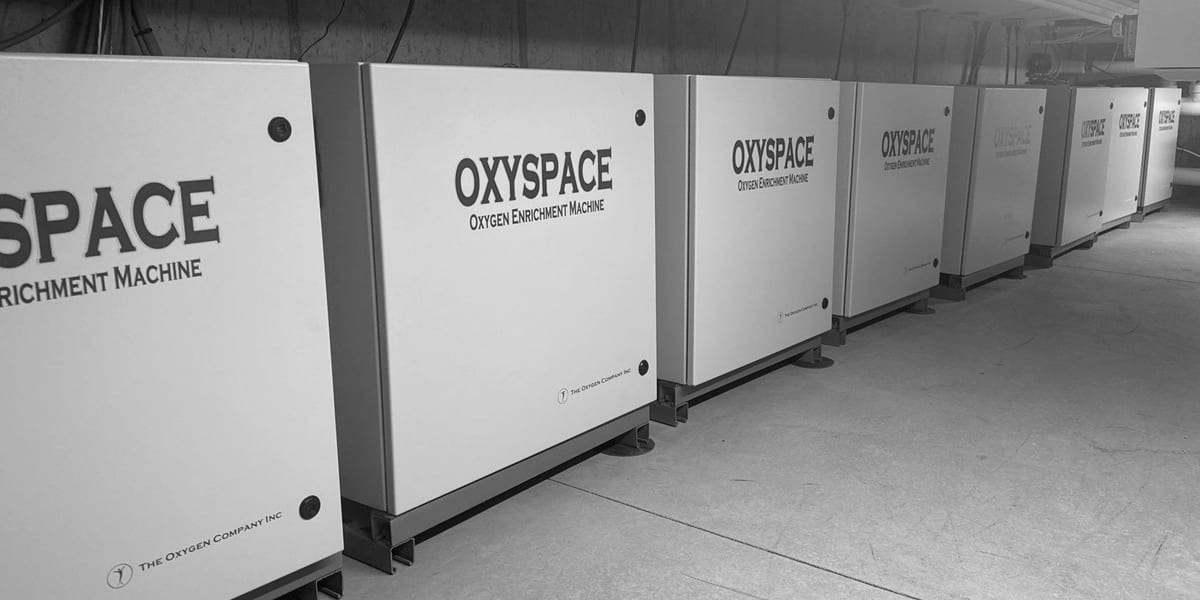

OxySpace machines, made by The Oxygen Company, our manufacturer. Field photograph.
The outlet, in section and elevation. Live: enriched air leaving the port, simulated. Illustrative residence; not a specific project.
Our systems vanish into your home’s existing infrastructure. Equipment hides in mechanical spaces while oxygen flows silently through our proprietary installed tubing and into your room. Our oxygen generation equipment runs at under 60 decibels.
No visible equipment in living spaces
Silent in-room operation

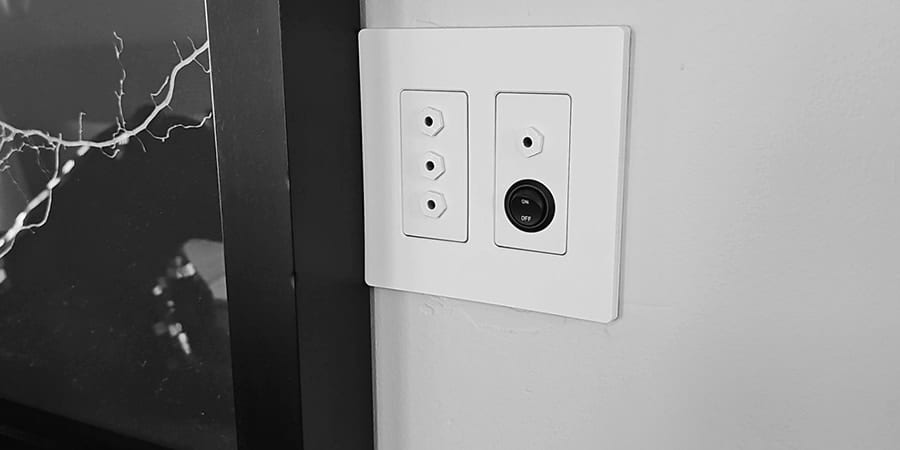

Outlet port with control: simple bedside control

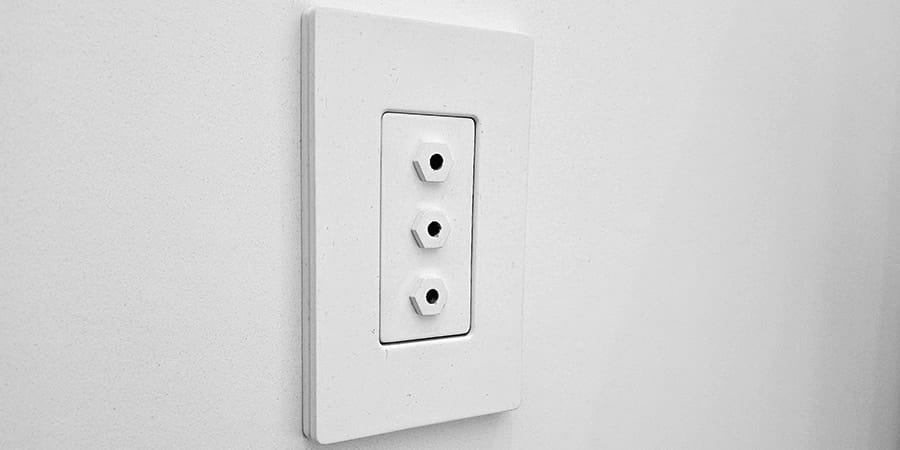

Oxygen outlet ports: customized to match existing trim
The spec sheet
Technical specifications
Engineered for reliability, efficiency, and seamless integration into your home.
Oxygen purity
90% ± 3%
Flow rate
20 L/min
Enrichment capabilities
up to 2,000 cu ft per machine
Power consumption
1,150 W per machine
Noise level
60 dB at 3 ft
Internal component lifespan
10,000+ hours
Advanced features
Automatic altitude adjustment
Modular design
Multi-zone control options
The machines are made by The Oxygen Company, our own manufacturer, founded in 2005. We design, install and service every system ourselves.
Control and monitor your system from anywhere with our advanced smart home integration.
212223242526
25.0%O2 · Room target, on a dial from 20.9% to 26.0%
Mobile app controlAdjust settings, monitor performance, and receive alerts from your smartphone.
Voice commandsWorks with Alexa and Google Home for hands-free control.
Analytics & insightsTrack oxygen percentage, energy usage, and system performance over time.
Smart alertsReceive maintenance reminders and system notifications.
Energy efficientAutomatic optimization reduces power consumption and maximizes efficiency.
Works with Lutron · Crestron · Alexa · Google Home
Safety first design
No stored oxygen = no fire risk.
Unlike systems that utilize oxygen tanks, our system doesn’t store oxygen. It creates oxygen-enriched air on demand and immediately delivers it to each desired room, eliminating fire hazards associated with traditional oxygen systems.
